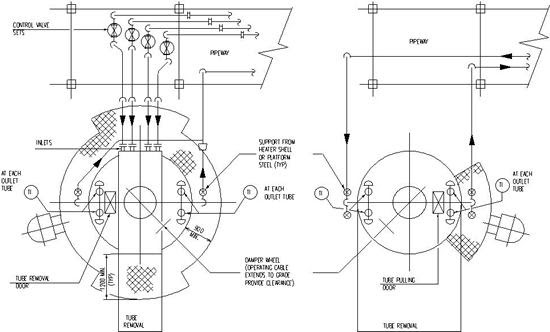

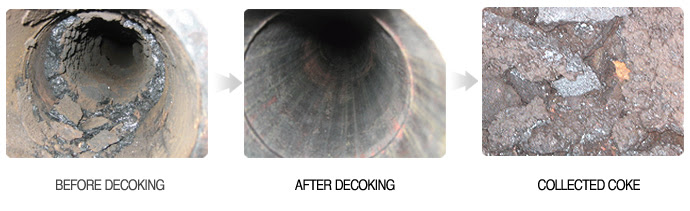

Furnace decoking procedure

Thus, on-line spalling offers the advantage of allowing the furnace to continue in operation while the furnace tubes are being cleaned and has fewer environmental issues than steam-air decoking. However, on-line spalling may not remove all of the coke from the coils, and other methods such as steam-air decoking and mechanical pigging are still required to bring the furnace back to start-of-run. A process for decoking a convection section of a furnace for cracking a hydrocarbon fee the furnace comprising a radiant section having burners that generate radiant heat and hot flue gas, and the convection section having at least one heat exchange tube for conveying the hydrocarbon feed.

The process includes the step of establishing a flue. How Pigging Works - an HPS Pigging System in Operation - Duration: 2:29. Clean Harbors is the only single source, full-service provider to offer comprehensive pigging and Smart pig inspection technology for refinery and plant processes. Internal buildup of deposits. Methods are provided for decoking the radiant coils in an ethylene cracking plant.

Air flow rates, steam flow rates and coil outlet temperatures are controlled during the decoking process to prevent tube damage, minimize decoking time and maximize coke removal. The furnace tube decoking pig has become the main means of removing deposits from furnace tubing. This more advanced cleaning method was born from traditional cleaning methods like chemical cleaning and combustion methods.

Here is how they work. A pig has pins uniformly studded around the its surface. When these pins come in contact with the. A method for decoking the radiant coils in an ethylene furnace comprising the steps of: (a) providing a flow of steam and firing burners in the furnace to heat the radiant coils to achieve an average coil outlet temperature of about 830° C. Moreover, improper decoking can shorten the furnace run-length. The decoking procedure affects the performance of the furnace and the life of the radiant coil.

This tutorial will introduce decoking concepts and examine important factors that contribute to the safe and successful execution of a decoke with a short duration. Decoking Descaling Technology Inc. DDT) is the world leader in pigging of refinery heater tubes. Typically in ethylene plants, cracking furnaces need to be decoked regularly.

Netherlocks valve interlocks guide operators through this manual operation safely, ensuring strict adherence to procedure. Venturi critical pressure after complete decoking pressure CPR. The steam-air decoking process in USC-cracking furnace coil was simulated based on reaction kinetics, material balance, heat balance and momentum conservation, and a dynamic decoking model for. Because the tubes are still very hot during the decoking , the. Depending on your procedure and usage of the furnace , an actual measurement of temperature is the best and is mostly enough to determine the accuracy of the whole furnace.

To see the procedure on how to calibrate a temperature controller, please visit this link. Home › Forums › Coking › Maintenance › Steam air decoking This forum contains topics and replies, and was last updated by Alfredo Velasco years, months ago. The interchangeable appendages come in.

Viewing topics - through (of total) Topic Voices Posts Freshness Introduction of air at the start of radiation coil instead of convection coil. On the basis of the of this study, the air and steam flow to the reactor tubes during the decoking procedure are adapted to propose an optimized decoking procedure that allows reducing the required decoking time of an industrial ethane cracking furnace by a factor of 3. In the new decoking conditions for the ethane cracker, the air flow. On-Line Spalling Overview and Basic Procedure. Notice: Details of each delayed coker must be considered in the development of the OLS. Furnace Design Considerations.

A detailed model of coupled heat transfer in the firebox and coke oxidation in the coils of a commercial ethane pyrolysis furnace was developed to simulate the decoking process. Ensure that the area is clean and the calibration due date of the temperature indicator is with in calibration period. Bulb glows, which indicates the power supply to the instrument. Mechanical decoking , or “pigging”, has been proven to be the most effective method of removing internal fouling, coke and scale from the inner surface of fired heater and boiler process tubes.

Drawing on extensive operational experience, Cokebusters has advanced to become a world leading provider for mechanical decoking. Care must be taken in the design of an on-line spalling procedure to assure safety, to protect equipment, to protect piping, and to complete a good spall. On-line spalling is one of three accepted methods for decoking a delayed coker furnace. Steam-air decoking and pigging are also used.

As a pretreatment procedure TBPS is injected into the dilution steam for - hrs after decoking operation. The continuous injection of TBPS significantly reduces the coke formation with an increased run length of the cracking furnace. Ethylene producers report that the negative impact on quench tower acidity that is usually observed with other sulfiding agents and attributable to SOx. Third remedy is to apply “internally stepped fittings”, which have been applied successfully on many occasions. FURNACE TUBE INSPECTION Inspecting furnace tube is sometimes not an easy task.

In steam-air decoking , a steam and air mixture is passed through the coke deposits. The pictured gasification unit, a specially designed spool piece was fabricated to connect the launcher to the furnace. The calculation and analysis of decoking process in cracking furnace show that the current decoking procedure still needs to be improved.
